管線網路設計模擬系統 |
 |
|
|
|
| |
|
| |
最好的使用介面 |
| |
|
Ø |
繪製
Iso 及
orthogonal 圖 |
|
Ø |
迴路可不同 Scope， 同步顯示 |
|
Ø |
內建資料庫：標準管子、管件
、流體 |
|
Ø |
迴路圖上顯示輸入規格及計算結果 |
|
Ø |
可自建管子、管件、pump、流體資料庫 |
|
Ø |
自動偵測輸入錯誤並顯示 |
|
Ø |
顏色區別顯示管長、管徑、流速、node
壓力 |
|
Ø |
可插入底圖 |
|
Ø |
Checking
elevation profile |
|
Ø |
具設計及分析功能 |
|
Ø |
輸出至一般印表機及大型繪圖機 (HP-GL/2) |
|
Ø |
可編輯式 Properties windows |
|
Ø |
輸出資料：圖形、表格(可匯至Excel) |
|
Ø |
．．．．． |
|
| |
 |
| |
|
| |
PipeNet Standard 穩態設計模擬系統 |
| |
í |
包含元件： |
pipe, ducts,
fittings, pumps, fans, check valves, control valves, nozzles,
reducer, leaks, breaks & blocks, bend, coil, orifice plates, .....
所構成之 Network (loops/trees/grids) |
| |
|
í |
內建管線、管件、流體資料庫 |
 |
|
í |
設計及分析 |
|
í |
穩態系統 - 單相流 (Vapor/Liquid) |
|
í |
自建
pump 資料庫及管件資料庫 |
|
í |
管線
sizing |
|
í |
處理液體、氣體及蒸氣系統 |
|
í |
檢查
cavitations 現象 |
|
í |
可校正因標高產生之大氣壓力差異 |
|
í |
應用於
Cooling, steam distribution,
ventilation, water distribution, fuel gas distribution系統 |
|
| |
[回頁首] |
| |
|
| |
PipeNet
Transient 動態設計模擬系統 |
| |
|
í |
包含元件： |
pipes, operating valve,
variable speed pumps, air release and vacuum breaker valves,
accumulators, PID controllers and transfer functions 所構成之
Network |
|
í |
精密的計算分析Rigorous transient
analysis |
|
í |
Hydraulic transient force |
|
í |
Water hammer |
|
í |
Surge analysis |
|
í |
Cavitations modeling |
|
| |
 |
| |
[回頁首] |
| |
|
|

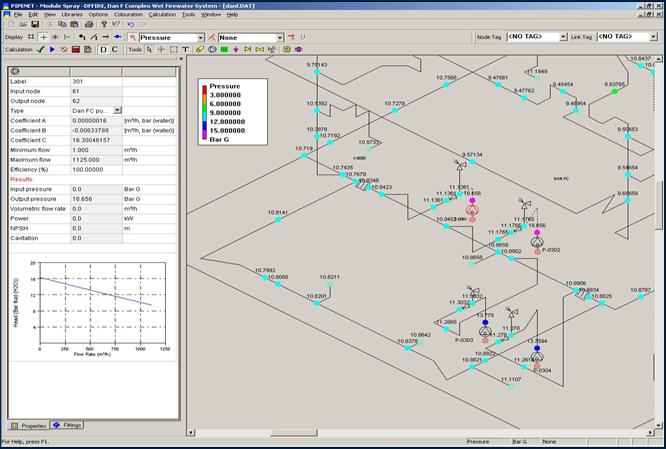

PipeNet Spray/Sprinkler 消防管路設計系統 |
| |
|
